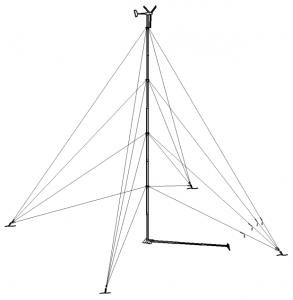

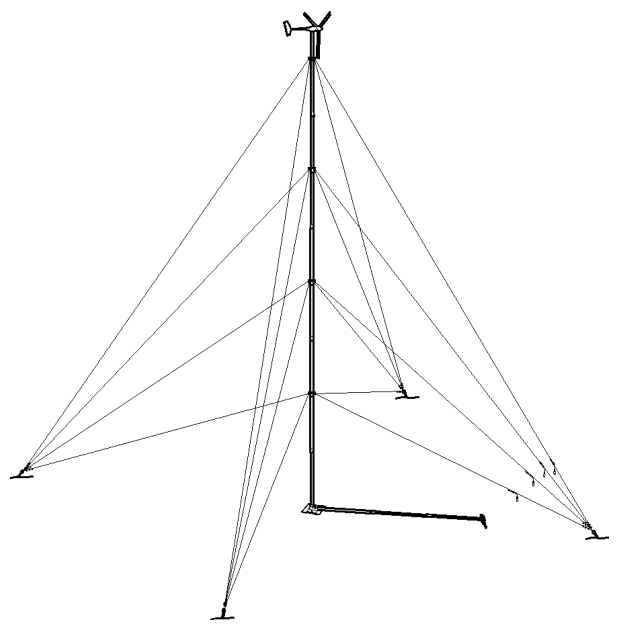

Tilt-Up Guyed Tubular Tower



The BWC Tilt-Up Guyed Tubular Tower is the most complete, out-of-the-box, user-friendly tower system for a small wind turbine on the market today. It is available exclusively for use with the Bergey Excel 1 wind turbine (i.e., we do not sell it for use with other brands of wind turbines). The Tilt-Up Tower is a guyed tilting tower that allows all work to be done at ground level and it is available in heights from 18 m (60 ft) to 30 m (100 ft). The Tilt-Up Tower is ruggedly built and comes with the longest warranty (5 years) in the industry.



The Tilt-Up Tower is the factory recommended tower for the Bergey Excel 1 tower because it combines cost-effectiveness and ease of installation. Over the long-term the Tilt-Up Tower will also reduce “total costs of ownership” by making it easier for owners to inspect, provide preventive maintenance (particularly in corrosive environments), and perform repairs to the Excel 1 wind turbine.

The Tilt-Up Tower kit includes all of the components and fasteners required to assemble and ground the tower. The tower can be installed without concrete work in areas with good soil strength and minimal rocks (that would impede the augering for the guy-wire anchors). In weak or rocky soils the use of concrete to fix the anchors is required. The tower kit includes material for grounding the tower (or “earthing”), an important element in protecting the system from lightning damage.

The Tilt-Up Tower is available in three heights:

  • 18 meters (60 ft)
  • 24 meters (80 ft)
  • 30 meters (100 ft)



The tower is guyed at vertical intervals of approximately 20 ft (6 meters). The Tilt-Up Tower is best installed on level ground, but can be installed on slopes or uneven terrain provided that the base and the anchors on the tilt-axis can be kept fairly level.

After assembly of the tower, wind turbine, and tower wiring on the ground, the tower and turbine are tilted-up to the vertical position using a winch (optional) or a vehicle.

A winch is preferred because of the greater control they afford. The towers are provided with a lever arm, called a gin-pole, which runs from the base towards one of the guy anchors. The gin-pole converts the pulling force on the pull-up rope or cable into a lifting force on the turbine and tower.
